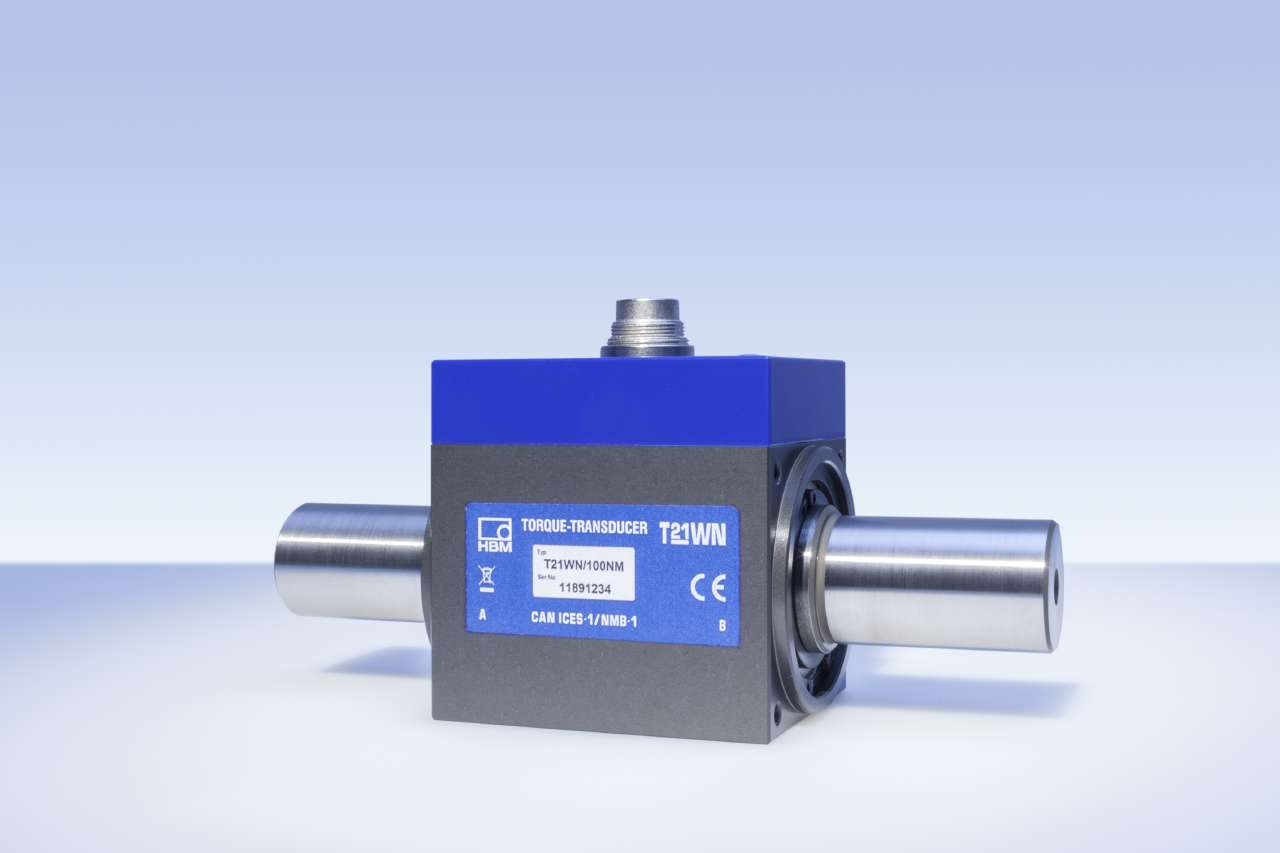

New T21WN “All-Inclusive” Torque Sensor Allows Simultaneously Measuring Torque, Speed and Angles

The T21WN torque transducer is available with nominal (rated) torques ranging between 0.1 N·m and 200 N·m. The maximum permissible rotational speed of torque measuring system is up to 20,000 rpm, depending on the measurement range. An integrated rotational speed/angle of rotation measuring system with 360 pulses per revolution completes the transducer and can be used up to the specified maximum nominal (rated) rotational speed without restrictions.

The transducer is supplied with the direct voltage of 24 V that is common in test benches. The T21WN is suitable for use in substantially more dynamic applications than the preceding model, the T20WN, thanks to its measurement bandwidth of 1 kHz. Users benefit from a significantly broader range of functions than with the preceding model – at the same price.

Further information on the T21WN torque transducer can be found at: https://www.hbm.com/en/7343/t21wn-torque-meter-with-cylindrical-shaft-stubs/
