Real-Time Test Bench Automation and Data Analysis with the New Profinet Gateway CX27C

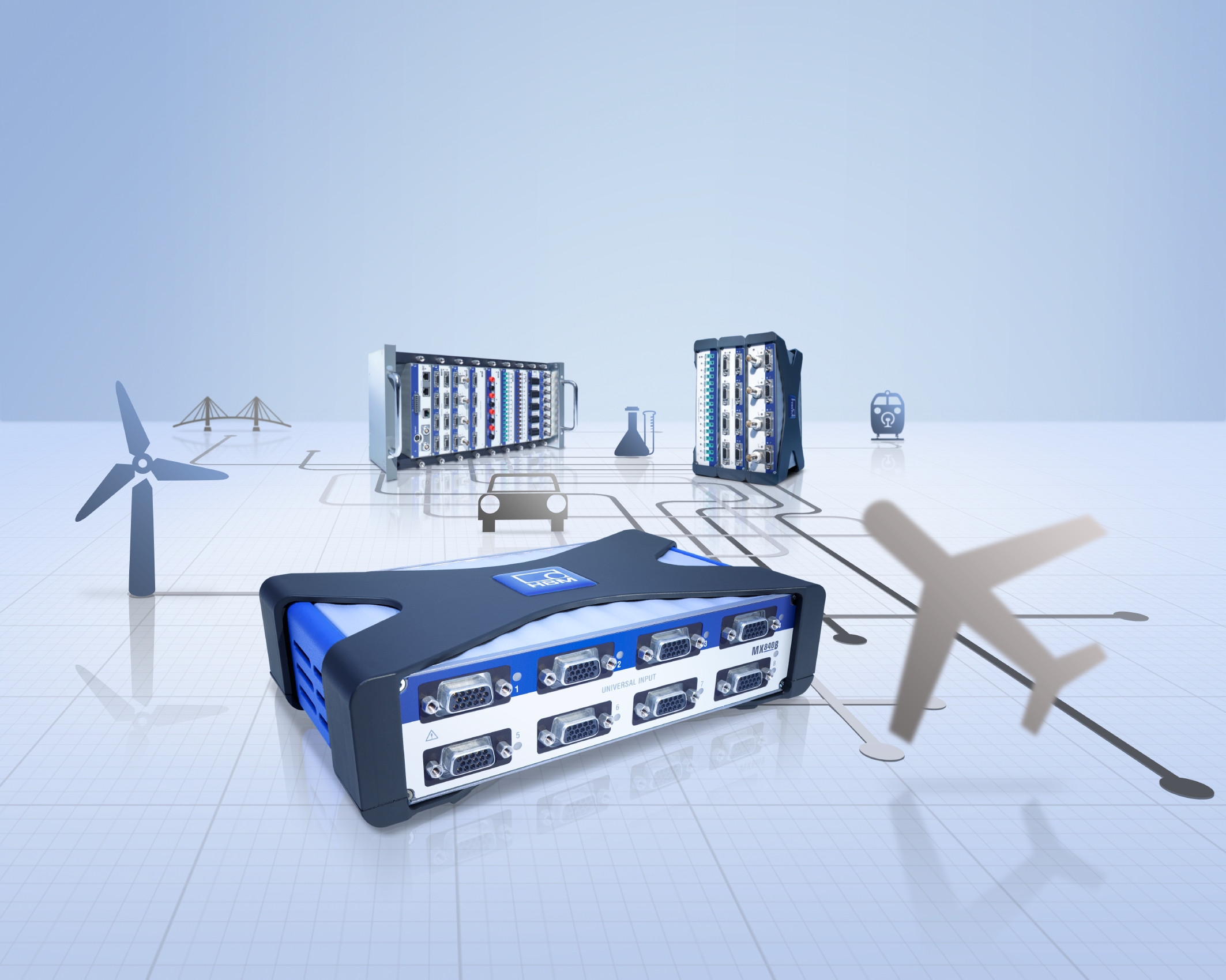

The QuantumX CX27C gateway module, the latest addition to the QuantumX modular data acquisition system, offers test engineers maximum flexibility in testing their applications and simultaneous integration of up to 199 sensors in PROFINET IRT in real time. QuantumX CX27C is the ideal choice for quick results even in highly automated test benches with small to high channel counts, such as component, powertrain or durability test benches.

In combination with HBM’s catman PC software, sensor and signal data can be viewed, analyzed and recorded with sample rates up to 100 kS / s per channel, without affecting real-time automation tasks. The gateway modules perfectly play with the QuantumX and the ultra-rugged SomatXR family, even in a distributable way.

Integration is quick and easy by using automatic sensor recognition (TEDS), auto mapping function or parameter file generation and some diagnosis services.

daq_CX27C_002

The QuantumX CX27B gateway module for EtherCAT applications is also available from HBM.

HBM’s QuantumX data acquisition system is the perfect tool for almost all test and measurement requirements. QuantumX is the first choice among test engineers worldwide for reliable data acquisition of various physical quantities and sensor technologies. It has the unique ability to acquire information from almost any type of signal or sensor.

Further details on the product: https://www.hbm.com/en/2131/quantumx-cx27/
