Compact Versatile Video Cross Hair Generator


A cross hair device is used in many applications such as welding, machining centers medical industry, security and surveillance, and military. The crosshair device provides a user with a visual reference point on the video feed in real time. The overlay reference allows the individual to gauge relative position, distance and orientation relative to other objects in the video view. A cross hair device is often used for targeting purposes.

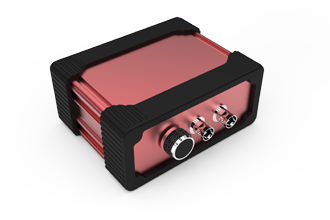

Invisual E Inc. video cross hair device comes in 3 variants. One is a BNC or RCA input / output. The other is a SVIDEO input / output. The third option is an OEM level board for those that would like to integrate into their own package or machinery. The cross hair device offered is a robust, versatile, compact easy to use, video cross hair generator. Available on the market for a wide market audience with a cost effective price tag. The video input options are NTSC or PAL format which are auto-detected by the device. The output video is in exactly the same form as the incoming video except for the superimposed cross hair generated by the device. The cross hair device supports five different cursor types: single cross-hair, double cross-hair, single vertical line, single horizontal line, and circle. Other adjustments include : position, color, line thickness, solid or dashed lines. When the adjustment is complete the settings are saved to board memory. The setting are restored when power is applied.

Cross Hair Specifications:
 Video standards supported: NTSC, PAL.
 Power requirements: 8 to 15 Volts, 80 mA
 Input/output Impedance: 75 Ohms
 Cursor types: Cross-hair, double cross-hair, single line, and circle
 Control: Rotary encoder with press switch
 Video connectors: RCA, BNC, or S-Video jacks.
 Power connector: 2.1 mm DIN, center pin positive
 ROHS: Lead free
 FCC & CE compliant.
To view these versions follow this link:
https://www.invisuale.com/video-crosshair-board/
https://www.invisuale.com/video-cross-hair-generator-bnc/
https://www.invisuale.com/video-cross-hair-rack-mount/
https://www.invisuale.com/video-line-generator-svideo/
https://www.invisuale.com/video-cross-hair-generator-svideo/
For a quote and further information on this affordable cross hair generator, please feel free to ask us a question or give us a call.
. Video Cross Hair Synonyms
• Video Line Generator
• Video Cross Hair Generator
• Video Cross Line Generator
• Video Crossline Generator
• Video Crosshair Generator
• Video Pattern Generator
